The Astra 23.5°E satellite position is an important European orbital location that carries a variety of television, radio and data services. For viewers in the United Kingdom, receiving Astra 23.5°E requires accurate dish alignment, a clear line of sight and correctly adjusted satellite equipment.

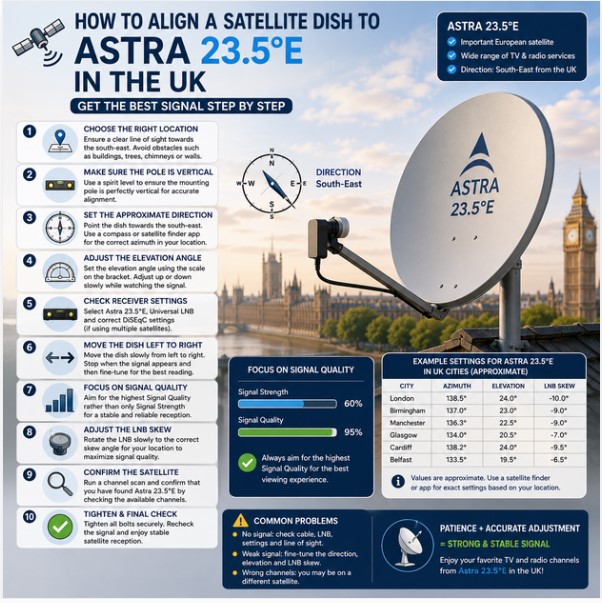

Although finding the satellite is not difficult, even a small error in the dish direction, elevation angle or LNB position can significantly affect signal quality. This step-by-step guide explains how to align a satellite dish to Astra 23.5°E in the UK and achieve the strongest possible signal.
Step 1: Choose the Right Location for Your Satellite Dish
The first step is selecting a suitable location for the dish.
Your satellite dish needs a completely clear line of sight toward the south-east. Because Astra 23.5°E is located at an orbital position east of the United Kingdom, the dish must be directed toward the appropriate south-eastern section of the sky.
Before installing the dish, check for possible obstacles such as:
- Tall buildings.
- Trees and branches.
- Chimneys.
- Walls.
- Nearby houses.
- Roof structures.
- Large metal objects.
Even if the dish has a clear view when installed, remember that trees can grow and eventually block the signal.
Step 2: Make Sure the Mounting Pole Is Perfectly Vertical
Before adjusting the satellite dish, check that the mounting pole or wall bracket is completely vertical.
This is one of the most important steps in the installation process.
Use a spirit level to check the pole from different sides. If the mounting pole is tilted, the elevation scale on the dish bracket may not provide accurate results.
A perfectly vertical pole makes it much easier to:
- Set the correct elevation.
- Adjust the dish accurately.
- Find the satellite more quickly.
- Maintain a stable signal.
Step 3: Set the Approximate Astra 23.5°E Direction
The next step is to position the dish in the approximate direction of Astra 23.5°E.
From the United Kingdom, the satellite is generally located toward the south-east.
However, the exact azimuth angle changes depending on your location.
The direction required in:
- London.
- Birmingham.
- Manchester.
- Liverpool.
- Cardiff.
- Glasgow.
- Edinburgh.
- Belfast.
will not be exactly the same.
For this reason, it is recommended to use a satellite alignment calculator, satellite finder application or professional signal meter to determine the correct azimuth for your exact location.
Set the dish approximately in the correct direction before starting the fine alignment process.
Step 4: Adjust the Dish Elevation
The elevation angle determines how high the satellite dish should point above the horizon.
The correct elevation for Astra 23.5°E changes depending on where you are located in the UK.
As a general rule, the satellite appears lower in the sky as you move farther north, which means viewers in northern areas may require different elevation settings compared with viewers in southern England.
To adjust the elevation:
- Loosen the elevation bolts slightly.
- Use the elevation scale on the dish bracket as a starting point.
- Set the approximate angle for your location.
- Move the dish slowly upward or downward.
- Watch the signal quality reading on your receiver.
Make very small adjustments and wait for the receiver to update the signal meter.
Step 5: Use the Correct Receiver Settings
Before searching for the satellite signal, make sure the receiver settings are correctly configured.
The basic settings may include:
- Satellite: Astra 23.5°E
- LNB Type: Universal
- LNB Frequency: According to the LNB specifications.
- DiSEqC: Set correctly if you are using multiple LNBs.
If you are using a multi-satellite system, make sure Astra 23.5°E is assigned to the correct DiSEqC port.
Incorrect receiver settings can make it difficult to find the satellite even when the dish is pointing in the correct direction.
Step 6: Move the Dish Slowly from Left to Right
After setting the approximate direction and elevation, begin searching for the satellite.
Move the dish very slowly from left to right.
Do not make large or fast movements.
A good method is to:
- Move the dish a very small distance.
- Wait several seconds.
- Check the signal quality.
- Continue moving slowly.
- Stop when the signal begins to appear.
Satellite receivers may take time to update the signal meter, so moving too quickly can cause you to pass the correct satellite position.
Once a signal is detected, continue making smaller adjustments until the highest possible quality is reached.
Step 7: Focus on Signal Quality
Most satellite receivers display both:
- Signal Strength
- Signal Quality
Signal strength is useful, but it is not enough to confirm that you have found the correct satellite.
A strong signal can sometimes come from a nearby satellite position.
For accurate alignment, focus primarily on Signal Quality.
The goal is to find the dish position that provides the highest stable quality reading.
Once you have found the best signal:
- Make small horizontal adjustments.
- Make small elevation adjustments.
- Check whether signal quality improves.
- Stop when further movement reduces the signal.
This process is known as fine-tuning the satellite dish.
Step 8: Adjust the LNB Skew
The LNB skew is the rotation angle of the LNB inside its holder.
The correct LNB skew varies according to your location in the UK.
After finding the Astra 23.5°E signal, slowly rotate the LNB while monitoring signal quality.
Follow these steps:
- Loosen the LNB holder slightly.
- Rotate the LNB in very small movements.
- Monitor the signal quality.
- Find the position that gives the best result.
- Tighten the LNB securely.
Even a small adjustment to the LNB can improve reception quality.
Step 9: Confirm That You Have Found Astra 23.5°E
After receiving a strong signal, do not immediately tighten the dish completely.
First, confirm that you have actually found Astra 23.5°E.
You can do this by:
- Performing a channel scan.
- Checking the detected services.
- Verifying the satellite name shown by your receiver.
- Checking known active services or transponders available from the orbital position.
This step is important because several satellite positions are relatively close to Astra 23.5°E.
Finding a strong signal does not always mean that the dish is pointing at the correct satellite.
Step 10: Tighten the Dish and Perform a Final Signal Check
Once you are satisfied with the signal quality, carefully tighten all dish mounting bolts.
Do this gradually.
Tightening one bolt too quickly can slightly move the dish and reduce the signal.
After tightening each bolt, check the signal quality again.
When all bolts are secure:
- Check the signal quality.
- Confirm that the signal remains stable.
- Check the LNB connection.
- Perform a channel scan.
- Test several services to confirm reliable reception.
Common Problems When Aligning Astra 23.5°E
No Signal Appears
If no signal appears, check the following:
- Make sure the dish is pointing in the correct general direction.
- Recheck the elevation angle.
- Confirm that the mounting pole is vertical.
- Inspect the satellite cable.
- Check the LNB connection.
- Make sure the receiver settings are correct.
- Confirm that there are no obstacles blocking the dish.
A Strong Signal Appears but the Wrong Channels Are Found
This usually means the dish is pointing at another nearby satellite.
Continue making very small adjustments and verify the satellite using your receiver or a known active service.
Signal Quality Is Low
Low signal quality may be caused by:
- Slightly incorrect dish direction.
- Incorrect elevation.
- Incorrect LNB skew.
- Poor-quality cable.
- A damaged LNB.
- Loose connectors.
- Obstructions in the signal path.
Fine-tuning the dish can often improve the signal significantly.
Can Astra 23.5°E Be Received with Another Satellite on the Same Dish?
Yes, depending on the dish size and installation setup, it may be possible to receive Astra 23.5°E together with other nearby satellite positions using multiple LNBs.
One popular option is combining nearby European orbital positions in a multi-LNB installation.
However, the exact setup depends on:
- The size of the satellite dish.
- Your location in the UK.
- The satellites you want to receive.
- The type of LNB holder.
- The DiSEqC configuration.
- The available signal strength at your location.
For the best results, align the main satellite accurately before adding additional LNBs.
Tips for Getting the Strongest Astra 23.5°E Signal
To achieve the best possible reception, follow these tips:
- Install the dish where it has a clear line of sight.
- Make sure the mounting pole is perfectly vertical.
- Use a good-quality LNB.
- Use high-quality satellite cable.
- Protect outdoor cable connections from water.
- Avoid unnecessary cable joins.
- Move the dish slowly during alignment.
- Focus on signal quality.
- Adjust the LNB skew carefully.
- Check the signal again after tightening the bolts.
Can Weather Affect Astra 23.5°E Reception?
Heavy rain, snow, strong winds and poor weather conditions can affect satellite reception.
A properly aligned dish with a strong signal margin is more likely to maintain stable reception during difficult weather.
This is why accurate dish alignment is important.
If the dish is only just receiving a weak signal, rain or heavy cloud may cause the picture to break up or disappear completely.
Fine-tuning the dish to achieve the highest possible signal quality can improve reception reliability.
